System Features:
-
Advance program design, quick & good performance on movements.
-
PA transmitter housing, water / shock / dust proof.
-
Single-low button transmitter, compact and lighter design, ensure safe & convenient operation.
-
Random security code up to 4.2 billions sets.
-
Receiver with 4-LED indicators, quick, simple judgment for operation status & after-service repair.

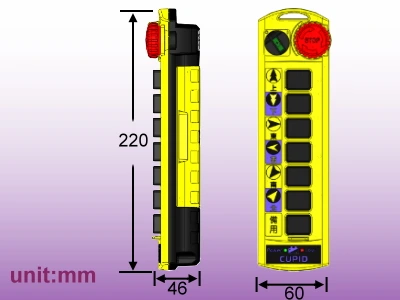

| Transmitter Specifications | |
|---|---|
| Operation range | 100M (standard) |
| Frequency range | FM 418Mhz(40CH) |
| Operation power | < 10mW |
| Consumption | <27mA |
| Antenna | internal type |
| Operation temperature | -10%C ~ + 75*C |
| Source voltage | 1.5V(AA)*4pcs |
| Enclosure | IP65 |
| Housing | ABS+PC |
| Security code | 256 sets |

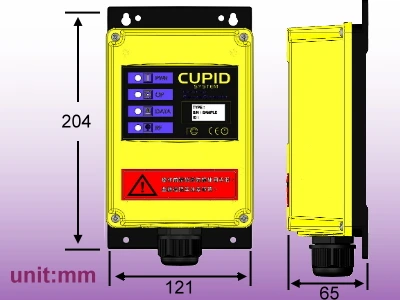

| Receiver Specifications | |
|---|---|
| HF sensitivity | -110dBm |
| Frequency range | FM 418Mhz(40CH) |
| Antenna | internal type |
| Operation temperature | -10°C~+75°C |
| Source voltage | AC110V/AC220V/ AC380V/AC415 50/60Hz |
| Enclosure | IP67 |
| Housing | ABS |
| Consumption | <12W |
| Security code | 4.2 billions sets |
| APOLLO Model Option | ||||
|---|---|---|---|---|
| Model | Control Points | Speed | Distance | Specifications |
| CUPID Q100 | 6 pushbuttons | 1 step | 100M | ( 1 ) AUX button ( momentary ) |
| CUPID Q100S | 6 pushbuttons | 1 step | 100M | ( 1 ) light button ( toggle/latch ) |
| CUPID Q100AB | 6 pushbuttons | 1 step | 100M | ( 1 ) button for A, B, A+B hoist |
| CUPID Q211 | 2 pushbuttons | 2 step | 100M |
( 4 ) 1 step-buttons + ( 1 ) AUX button ( momentary ) |
| CUPID Q112 | 1 pushbuttons | 1 step | 100M |
( 2 ) 2 step-buttons + ( 1 ) AUX button ( momentary ) |
| CUPID Q200 | 2 pushbuttons | 6 step | 100M |
( 1 ) AUX button ( momentary ) |
| CUPID Q200S | 2 pushbuttons | 6 step | 100M |
( 1 ) light button ( toggle/latch ) |
| CUPID Q200S | 6 pushbuttons | 6 step | 100M |
( 1 ) button for A, B, A+B hoist |
